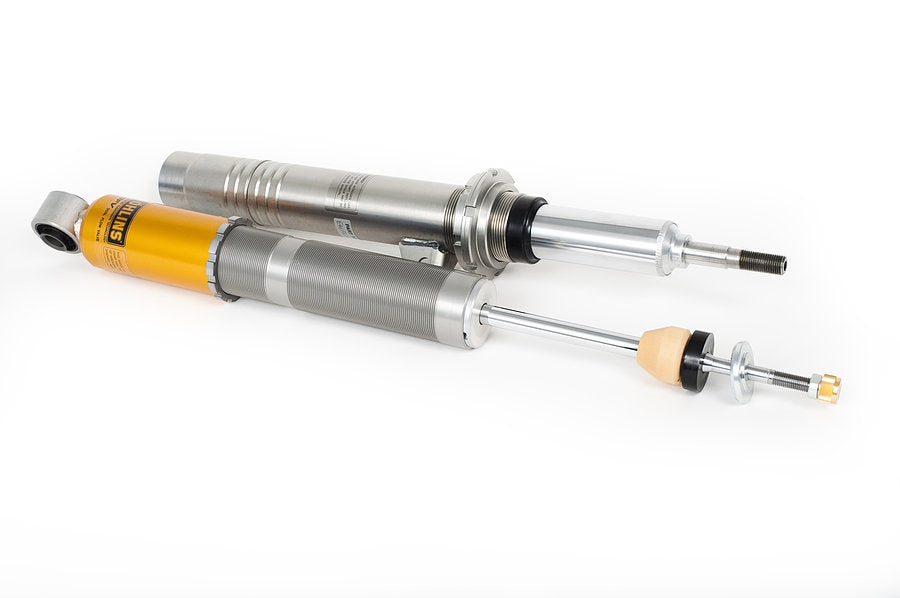

Öhlins Road & Track BMW M3 E46

A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.

General Features:

• DFV technology (Dual Flow Valve)
• Individual height adjustment
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year warranty

Features Front:

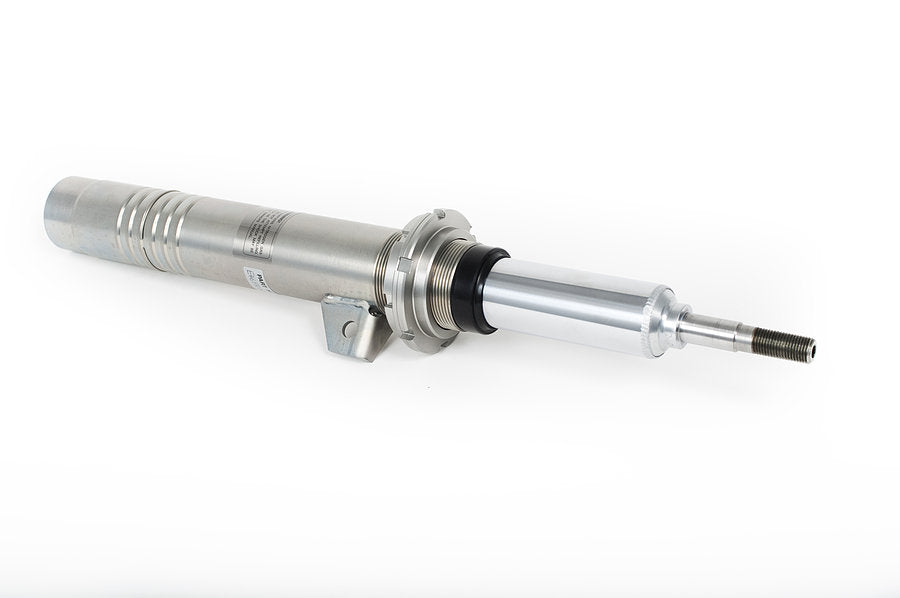

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 15 - 35 mm lower than standard with recommended setup
• Spring rate 70 N/mm
• Use with original top mounts

Features Rear:

• Conventional shock absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 5 - 30 mm lower than standard with recommended setup
• Spring rate 110 N/mm
• Use with original top mounts

Purchased Parts Package:

• Coil over kit incl. springs and mounting parts
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instruction
• Sticker set

Fits the following vehicles

• BMW M3 (E46), year 2000 – 2005

  • Type: E46
  • Variants: alle
  • EG TA: e1*98/14*0150*00-04
  • TÜV certificate
  • Manufacturer confirmation (SUI)
  • GOCA (BE)
