Öhlins Road & Track BMW M2F87, M3F80, M4F82, Competition, CS, CSL

A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.

General Features:

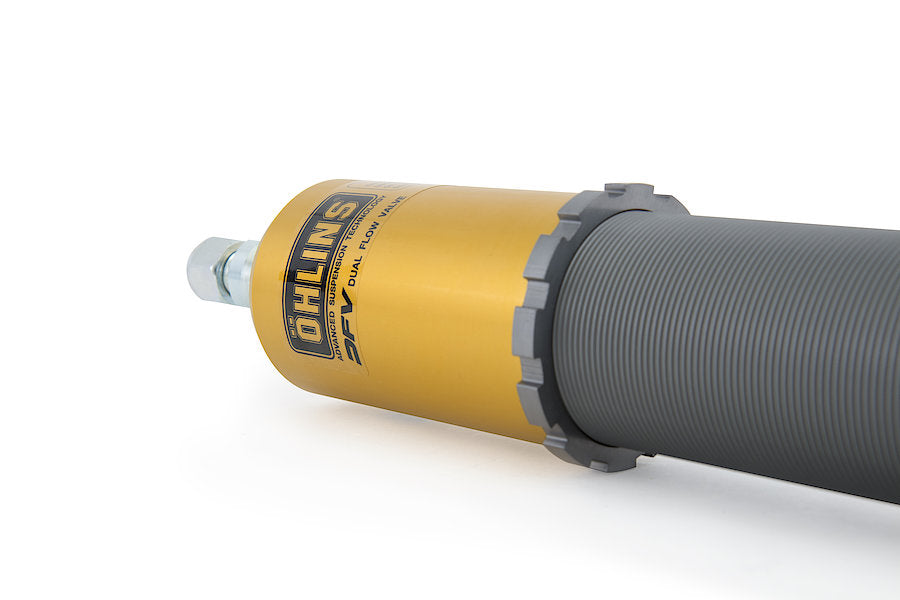

• DFV technology (Dual Flow Valve)
• Individual height adjustment
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year warranty

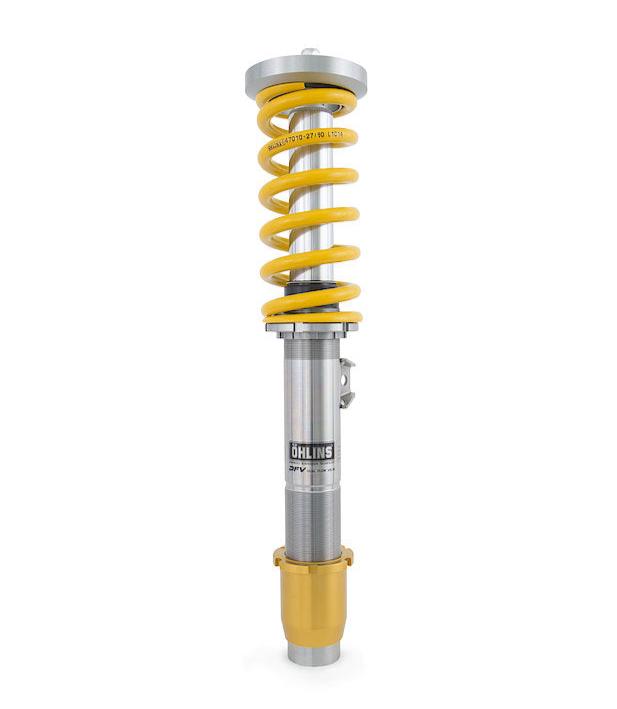

Features Front:

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 0 - 25 mm lower than standard with recommended setup
• Spring rate 90 N/mm
• Use with original top mounts

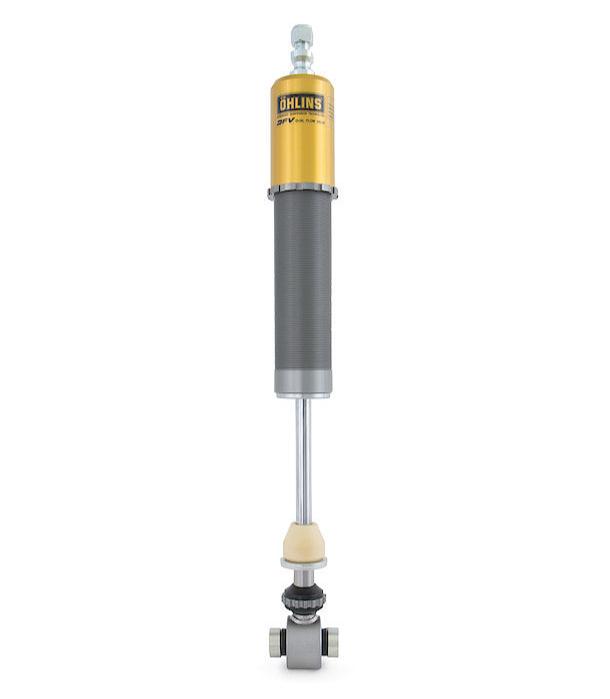

Features Rear:

• Conventional shock absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 0 - 25 mm lower than standard with recommended setup
• Spring rate 190 N/mm
• Use with original top mounts

Purchased Parts Package:

• Coil over kit incl. springs and mounting parts
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instruction
• Sticker set

EDC Cancellation Kits:

• BMW M3, part no. 35020-02

Cancellation Kits sind nicht im Lieferumfang enthalten und müssen separat bestellt werden.

Fits the following vehicles

• BMW M2 (F87), year 2016 – 2020

  • TÜV certificate
  • Manufacturer confirmation (SUI)
  • GOCA (BE)

• BMW M2 Competition (F87), year 2018 – 2020

  • TÜV certificate
  • Manufacturer confirmation (SUI)
  • GOCA (BE)

• BMW M2 CS (F87), year 2020

  • TÜV certificate
  • Manufacturer confirmation (SUI)
  • GOCA (BE)

• BMW M3, M4 (F80, F82, F83), year 2013 – 2020

  • TÜV certificate
  • Manufacturer confirmation (SUI)
  • GOCA (BE)
