Öhlins Road & Track BMW E81 E82 E87 E88 E90 E91 E92 E93

A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.

General Features:

• DFV technology (Dual Flow Valve)
• Individual height adjustment
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year warranty

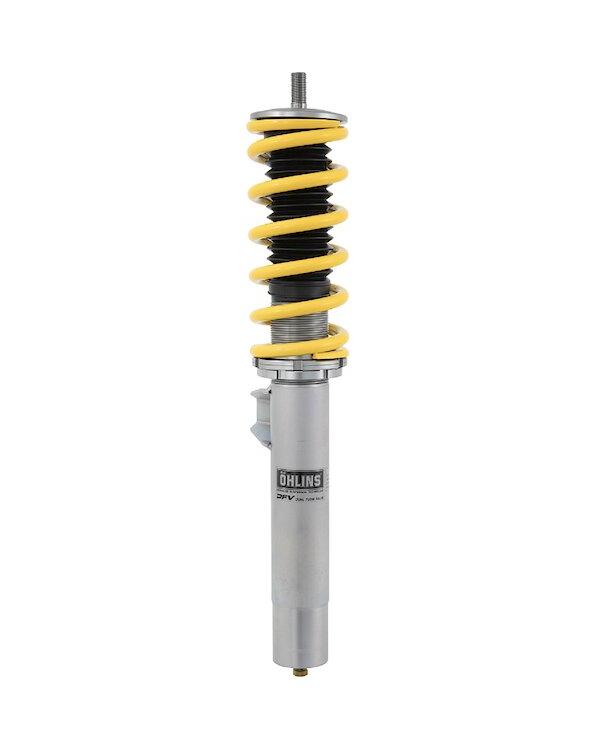

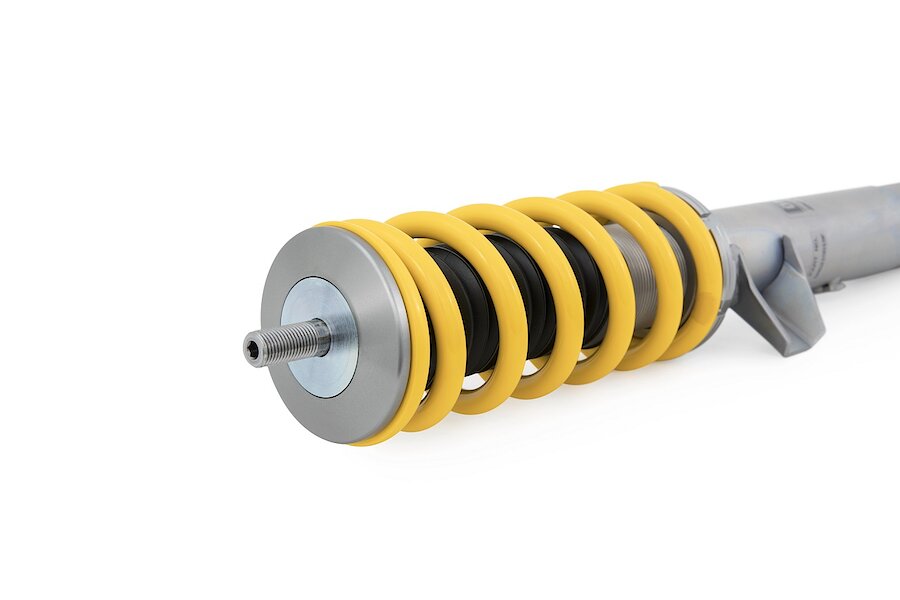

Features Front:

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 5 - 20 mm lower than standard with recommended setup
• Spring rate 70 N/mm
• Use with original top mounts

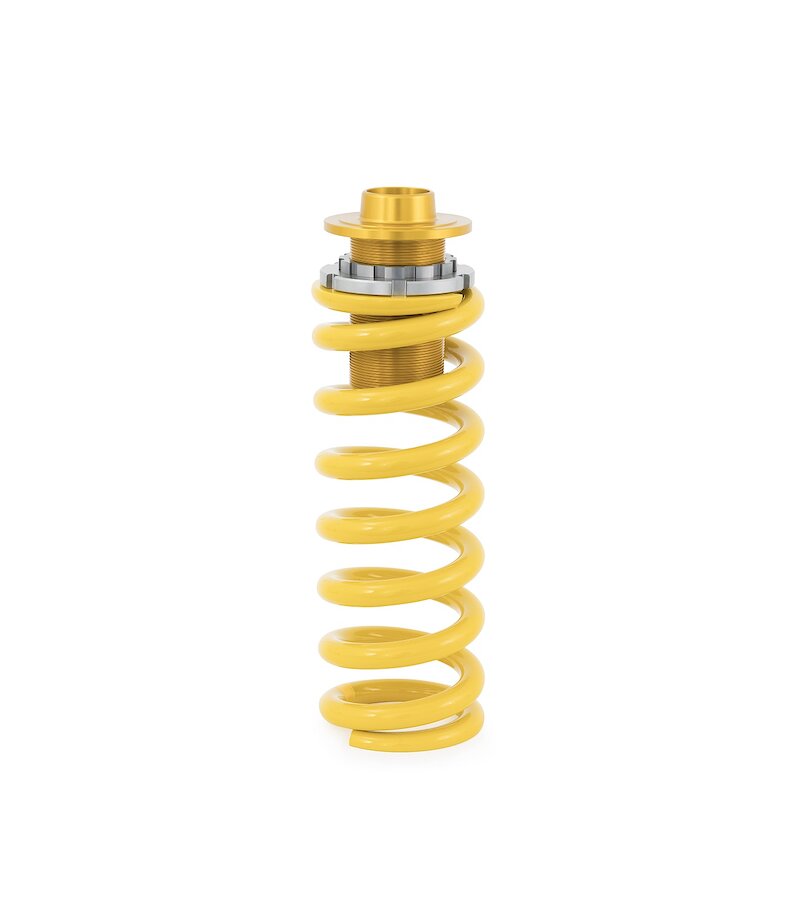

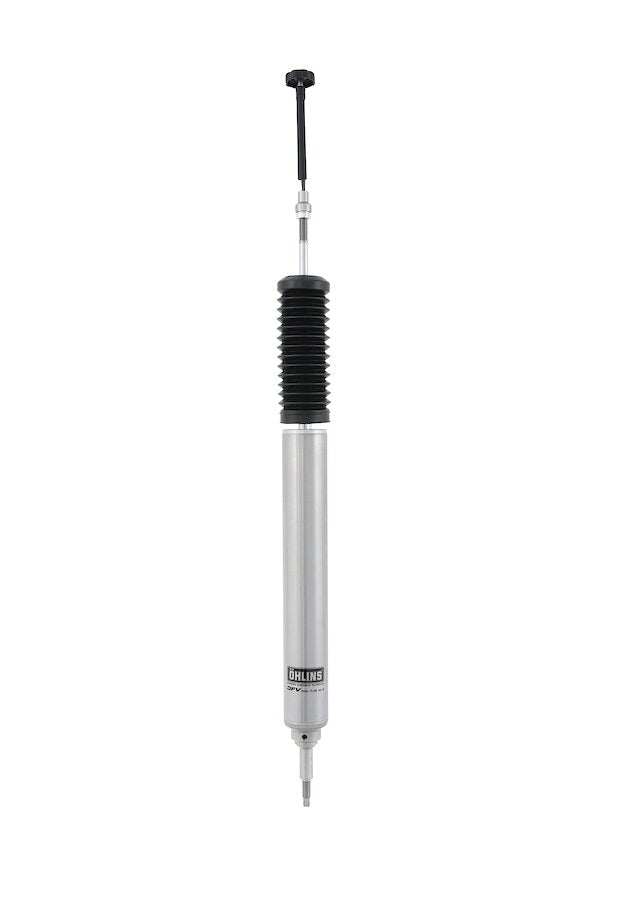

Features Rear:

• Conventional Shock Absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 10 - 40 mm lower than standard with recommended setup
• Spring rate 120 N/mm
• Use with original top mounts

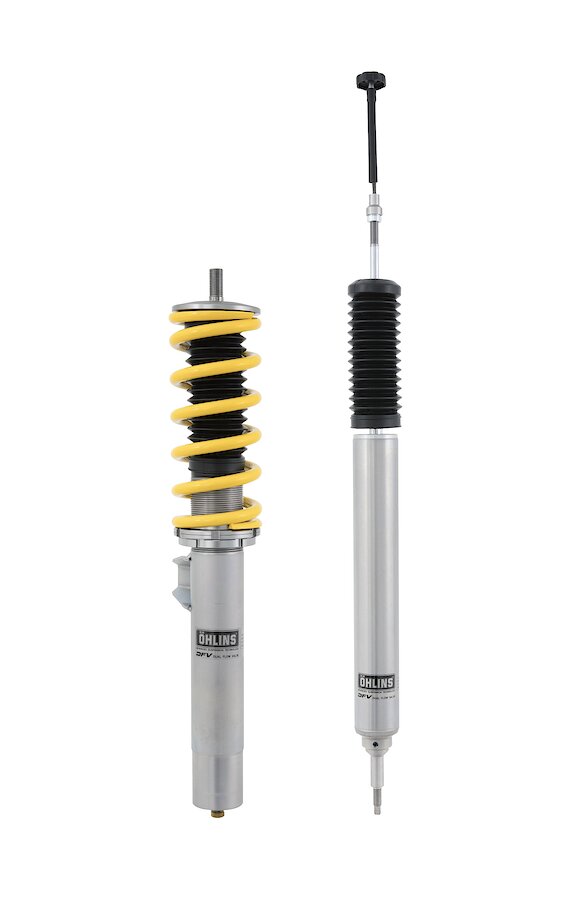

Purchased Parts Package:

• Coil over kit incl. springs and mounting parts
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instruction
• Sticker set

Fits the following vehicles

• BMW 3-Series (E9x) außer/except Hybrid & xDrive, 2005 – 2013

  • Type: E90, E91, E92, E93
  • Variants: alle / all
  • TÜV certificate
  • Manufacturer confirmation (SUI)
  • GOCA in preparation (BE)
